Aktif Güç Filtresi (APF) Nedir? Çalışma Prensibi ve Boyutlandırılması

Active power filters (APF) are very important technologies to improve power quality of electrical systems. APFs are also utilized to reduce harmonic disturbance and help improve the quality of power systems. With the rise of electronic devices used by industries, there is a greater need for a clean and reliable source of electricity which makes them essential for improving the management of electrical systems.

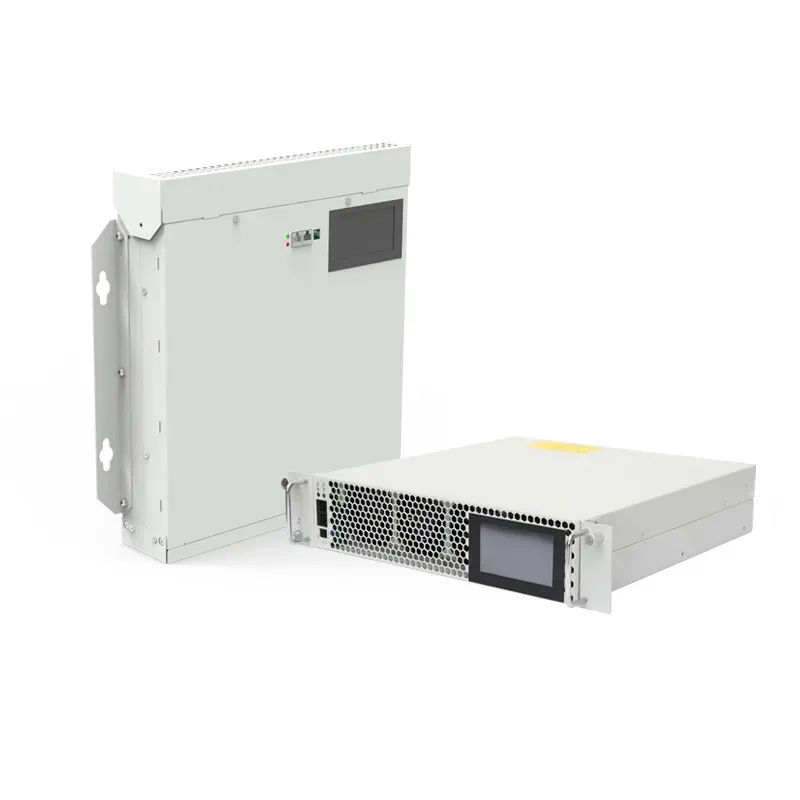

How Does an Active Power Filter (APF) Work?

An Active Power Filter operates by monitoring and analyzing a real-time waveform from a power system. It can identify both fundamental and harmonic components of the supply voltage and current and generate compensating currents for the purpose of counteracting the negative impacts of harmonics. By having a dynamic response, it can effectively filter out undesirable frequencies while allowing the fundamental frequency to pass through unencumbered, thus creating an optimally balanced power supply that meets the needs of sensitive electronic devices.

Key Benefits of Active Power Filters (APF)

The implementation of an APF offers numerous advantages:

• Harmonic Mitigation: APFs ensure compliance with regulatory requirements by significantly reducing harmonic distortions from the supply of electrical power.
• Improved Power Factor: APFs improve the efficiency of electrical devices through power factor correction resulting in reduced operating expenses.
• Enhanced Equipment Lifespan: Reduced contamination from electrical sources causes less equipment, so creating longer life for the equpped appliance as well.
• Real-time Adaptability: Compared to passive filter types, which have their characteristics predetermined, active filters (APFs) will automatically adapt themselves to changes in load and environmental conditions to provide more flexibility than passive filters.

APF vs. Passive Filter: Key Differences

A side-by-side comparison of active filters and passive filter systems quickly reveals the key distinctions between these product groups. Passive filters utilize only passive circuit elements (e.g., inductors and capacitors) to target predetermined harmonic frequencies; therefore, passive filters demonstrate little degree of adaptability to changing conditions. In contrast, active power filters employ both algorithmic computations and power electronics to offer dynamically adjusting levels of compensation over a wider operating frequency range. Because of their ability to provide dynamic compensation, active filters are generally more effective in applications where the harmonic content varies tremendously from time-to-time or from one location to another.

Common Applications of Active Power Filters

Active power filter(APF find extensive application across various industries, including:

• Manufacturing Plants: To ensure uninterrupted operation of machinery that relies heavily on electronic power.
• Data Centers: In situations that require both high reliability and high efficiency to be achieved, Power Quality Improvements will enable you to do so at their highest levels.
• Renewable Energy Systems: Harmonics are often an issue with wind turbine and solar panel generators, but the use of capacitor banks helps to stabilize their power output.
• Electrical Traction Systems: Frequently used in transportation sectors to improve the quality of traction power.

APFs do not just fulfill these functions; they also assist in complying with many of the stringent industry guidelines and standards for regulating the quality of power which has further increased their acceptance in today’s electrical networks.

What an APF Measures and Injects

An active power filter uses current transformers to observe the load or source current and a controller to separate unwanted components from the fundamental current required by the load. A voltage-source converter then injects a controlled current with opposite harmonic content. At the selected measurement point, the source current becomes closer to the reference waveform. Depending on the design and settings, the same converter may also provide reactive-current compensation and help balance phase current, but these functions consume current capacity and must be included in sizing.

The CT position defines what the controller can see. A CT installed around only part of a parallel feeder cannot correct current it does not measure. Reversed polarity, wrong phase mapping, excessive secondary lead burden, or an incorrect CT ratio can cause weak response, instability, or an alarm. Commissioning should prove phase sequence and polarity with a known load before enabling full automatic output.

How to Size an Active Power Filter

Do not select an APF only from transformer kVA or connected VFD horsepower. Measure the harmonic-current spectrum and RMS current at the intended point of correction during representative operating states. Determine the current that must be removed to meet the project limit, add reactive and unbalance current only if those functions are required, and apply ambient, altitude, enclosure, and redundancy margins. Check that the converter has adequate bandwidth for the harmonic orders that matter and that its CT input, voltage rating, short-circuit withstand, and communications match the site.

APF, Passive Filter, or Detuned Capacitor Bank?

An APF is attractive where loads change, several harmonic orders vary, or staged modular capacity is valuable. A tuned passive filter can be efficient for a predictable spectrum but must be studied with network impedance and switching states. A detuned capacitor bank is primarily a reactive-power solution designed to avoid a selected resonance region; it is not automatically a complete harmonic filter. Hybrid systems can divide steady reactive duty and dynamic harmonic duty, but their controllers and protection must be coordinated.

Commissioning and Acceptance

Record baseline voltage and current waveforms, spectrum, loading, and operating states. Verify CTs, ventilation, protection, bypass, alarms, and communications. Enable compensation gradually, watching converter current and bus voltage. Acceptance should compare before-and-after measurements at the agreed point using the same aggregation interval and production state. Investigate any new resonance, overheating, nuisance trip, or interaction with generators, UPS systems, capacitors, or other active compensators.

FAQ: Frequently Asked Questions About Active Power Filters

What types of Active power filter(APF) are available?

Three basic kinds of active power filter(APF) include: (1) Shunt APF – A shunt active power filter connects to loads in order to mitigate current harmonics. (2) Series APF – A series active power filter compensates for voltage quality (i.e. voltage distortion or disturbances) by being connected in-series with the supply utility. (3) Hybrid active power filter – A hybrid active power filter is a combination of both an active power filter and the passive filter, which improves total performance and efficiency of the filters compared to using either method alone.

What are harmonics, and why are they harmful?

Harmonics are frequencies within an electrical system that are not needed; they are multiples of the fundamental frequency, such as 60 Hz or 50 Hz. Harmonic issues can result in overheating, failure of electrical equipment, increased energy bills and greater wear and tear on electrical devices. Active Power Filters eliminate these unwanted harmonics from the system, allowing the system to run smoothly and reliably.

Is an Active power filter(APF) worth the investment?

An APF is quite often worth the expense to implement in any industrial, data centre and/or electronic equipment-sensitive environment. In the long term, the benefits of an APF include decreased energy losses and maintenance costs, increased lifespan of your equipment and greater overall efficiency of your system, all resulting in cost savings.

Can I install an Active power filter(APF) in my home?

Although an active power filter (APF) is commonly implemented to address power quality problems, such as harmonics from today’s appliances and renewable energy systems, APFs can be used in homes where there is a power quality problem due to harmonics from your specific application. However, because they are so expensive, they tend to be implemented more frequently in larger applications.

How do I select the right Active power filter(APF) for my application?

Before selecting an active power filter(APF), a thorough evaluation of your power system must take place. Factors to consider include; harmonic distortion, type of load, rating of the load and the degree of compensation you require. In addition, working with an expert or supplier that specializes in APF will help to ensure that you obtain the best possible active power filter(APF) for your application.

By providing increased energy efficiency, protecting delicate electronics from damage, and meeting power quality standards, active power filters represent an excellent investment for any business interested in improving its electrical systems.

Practical FAQ

What does an active power filter do?

It measures unwanted harmonic and optional reactive or unbalanced current, then injects controlled compensating current.

Can an APF improve power factor?

Many APFs can supply reactive current, but this uses converter capacity and must be included in the project settings and sizing.

How is APF current rating selected?

Use measured harmonic current by order and operating case, then include optional reactive duty, derating, expansion, and redundancy.

Where should APF CTs be installed?

Install them at the boundary the APF must control, with the correct ratio, polarity, phase mapping, and inclusion of all relevant parallel paths.

Does an APF replace a harmonic study?

No. The study defines the problem, correction point, required current, network interactions, and acceptance limits.
