Advanced Static Var Generator (ASVG) Explained for Engineers

An Advanced Static Var Generator (ASVG) combines fast reactive power compensation with selective harmonic mitigation in one power-electronic module—useful when PF and THD must be addressed together. This guide focuses on practical evaluation steps for U.S. industrial and commercial buyers—measurement, documentation, and lifecycle support—not generic marketing claims. Where equipment selection is involved, cross-check public specifications on cnbygele.com and confirm project-specific limits with your utility or consulting engineer. Section checklists can be reused as RFQ attachments and commissioning handover outlines.

Part 1. What ASVG Adds Beyond a Standard SVG

Like SVG systems, ASVG uses inverter-based reactive power control with millisecond-class response.

The ASVG difference is integrated harmonic current injection on dominant orders (often 3rd, 5th, 7th, and 11th) while correcting displacement power factor.

Power quality projects succeed when measurement, design, and procurement stay aligned across owner, consultant, and panel builder roles.

Document nominal voltage, available fault level, and ambient conditions before final equipment selection.

Use conservative language for performance claims until site-specific studies confirm targets.

Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.

If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.

Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.

Part 2. Topology and Performance Expectations

IGBT inverter stages with DSP control track load current and synthesize compensating reactive and harmonic components.

Bidirectional reactive support (leading/lagging) helps weak-bus voltage and mixed motor/electronics plants.

Compare total installed cost including reactors, controllers, enclosures, and commissioning—not equipment list price alone.

Internal links to SVG product line, low-voltage capacitor banks, and active harmonic filters help buyers navigate related product categories on cnbygele.com.

Lead times and MOQ vary by configuration; confirm in quotation for export shipments.

Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.

If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.

Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.

Part 3. Selection vs SVG, Capacitor Banks, or APF

Use stepped capacitor banks for stable base PF; use ASVG when PF and harmonics co-exist on fast-changing feeders.

Standalone active harmonic filters focus on THD; ASVG suits moderate harmonic targets plus reactive support in one cabinet.

Post-commissioning, schedule periodic verification of power factor, THD, and temperature rise at key buses.

Keep spare fuses, contactors, or modules identified in the maintenance plan.

Submit project parameters via CNBYG contact for engineering feedback on fit and documentation.

Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.

If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.

Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.

Part 4. Documentation and Handover Checklist

Industrial acceptance should not rely on energization alone—documentation proves ratings, safety, and maintainability for the next maintenance cycle.

Use the tables below as a starting RFQ checklist; your utility or EPC contract may require additional items.

For product-specific datasheets, cross-check related CNBYG product pages and request any missing type test excerpts.

Align factory acceptance tests with items your insurer or utility interconnection agreement may require.

When comparing quotations, normalize currency, Incoterms, and included commissioning services before ranking suppliers.

Part 5. Commissioning, Monitoring, and Long-Term Operations

Commissioning should verify that reactive and harmonic targets are met at the point of common coupling, not only at the compensation cabinet terminals.

Functional tests typically include step response, power factor at defined load points, and harmonic readings compared to contract or IEEE 519 guidance where applicable.

Monitoring after energization helps catch hunting, unexpected resonance, or capacitor cell failures before they affect production uptime.

Train maintenance staff on lockout/tagout, discharge timing for capacitors, and which alarms require immediate shutdown versus scheduled service.

Schedule a post-warranty review to reassess load changes—production line upgrades often change compensation needs within three to five years.

Utility account managers can clarify whether PF adjustments affect demand charges only, energy charges, or both—align KPIs before writing acceptance tests.

Keep a spare-parts criticality list (fuses, contactors, fan assemblies, control boards) based on lead time and production impact, not catalog defaults alone.

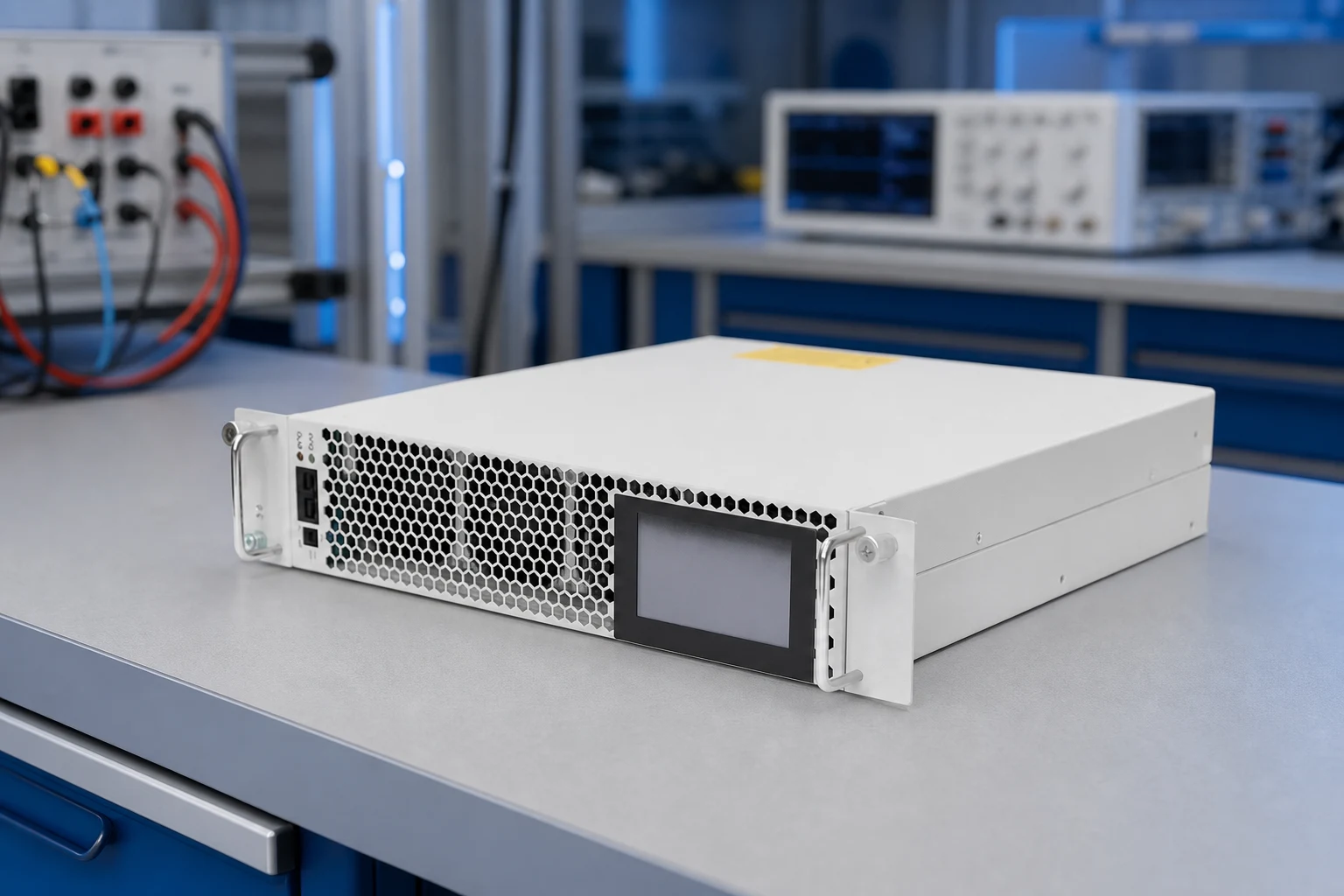

Recommended CNBYG Products

For project support, explore related product line, power quality planning articles, OEM/ODM programs, about CNBYG on cnbygele.com.

Ready to discuss your project? Contact CNBYG engineering contact with your voltage class, load list, and target power factor or THD goals.

FAQ

What is an Advanced Static Var Generator (ASVG)?

It is a power-electronic compensator—typically IGBT-based—that provides fast dynamic reactive power support and can also inject harmonic current to mitigate selected orders, addressing power factor and distortion in one platform.

How is ASVG different from a standard SVG?

A standard SVG focuses on reactive power and voltage support. ASVG adds harmonic mitigation on dominant orders while sharing the same inverter hardware, so one module can cover part of both PF and THD duties.

Can ASVG replace both capacitor banks and active harmonic filters?

Not always. Stepped capacitor banks may still be economical for stable base reactive load. ASVG is strongest when reactive demand varies quickly and moderate harmonic correction is needed on the same feeder.

Which harmonic orders does ASVG typically mitigate?

Vendor materials commonly cite low-order harmonics such as 3rd, 5th, 7th, and 11th. Confirm coverage and residual THD against your measured spectrum and utility limits.

When should I choose ASVG instead of separate SVG and APF?

Consider ASVG when cabinet space, commissioning time, or coordinated control between reactive and harmonic functions favor a combined platform—provided measured data supports the shared capacity split.

How fast does ASVG respond compared to capacitor switching?

ASVG responds in milliseconds class, while capacitor banks switch in steps with mechanical or hybrid switching delays—ASVG suits fast-varying loads that would hunt or wear contactors if corrected only with capacitors.
