Power Quality System Planning for Commercial Buildings
A power quality system combines measurement, mitigation devices, and maintenance processes to keep voltage and current within equipment tolerances. This guide focuses on practical evaluation steps for U.S. industrial and commercial buyers—measurement, documentation, and lifecycle support—not generic marketing claims. Where equipment selection is involved, cross-check public specifications on cnbygele.com and confirm project-specific limits with your utility or consulting engineer. Section checklists can be reused as RFQ attachments and commissioning handover outlines. As a cluster anchor, this article ties together measurement, mitigation, and procurement decisions so downstream device guides stay consistent with your site-wide power quality strategy.
Part 1. Common PQ Problems in Buildings
Elevators, HVAC VFDs, and LED/IT loads create harmonics and reactive demand that stress transformers.
Power quality projects succeed when measurement, design, and procurement stay aligned across owner, consultant, and panel builder roles.
Document nominal voltage, available fault level, and ambient conditions before final equipment selection.
Use conservative language for performance claims until site-specific studies confirm targets.
Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.
If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.
Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.
Pillar-level coverage means mapping every major compensator family—fixed and switched capacitors, SVC, SVG/STATCOM, and hybrid stacks—to the load dynamics and grid strength at your site.
Buyers evaluating a whole compensation program should sequence decisions: measure at the PCC, set PF and THD targets, then pick stepped versus dynamic equipment rather than starting from catalog kvar ratings.
Part 2. Mitigation Building Blocks

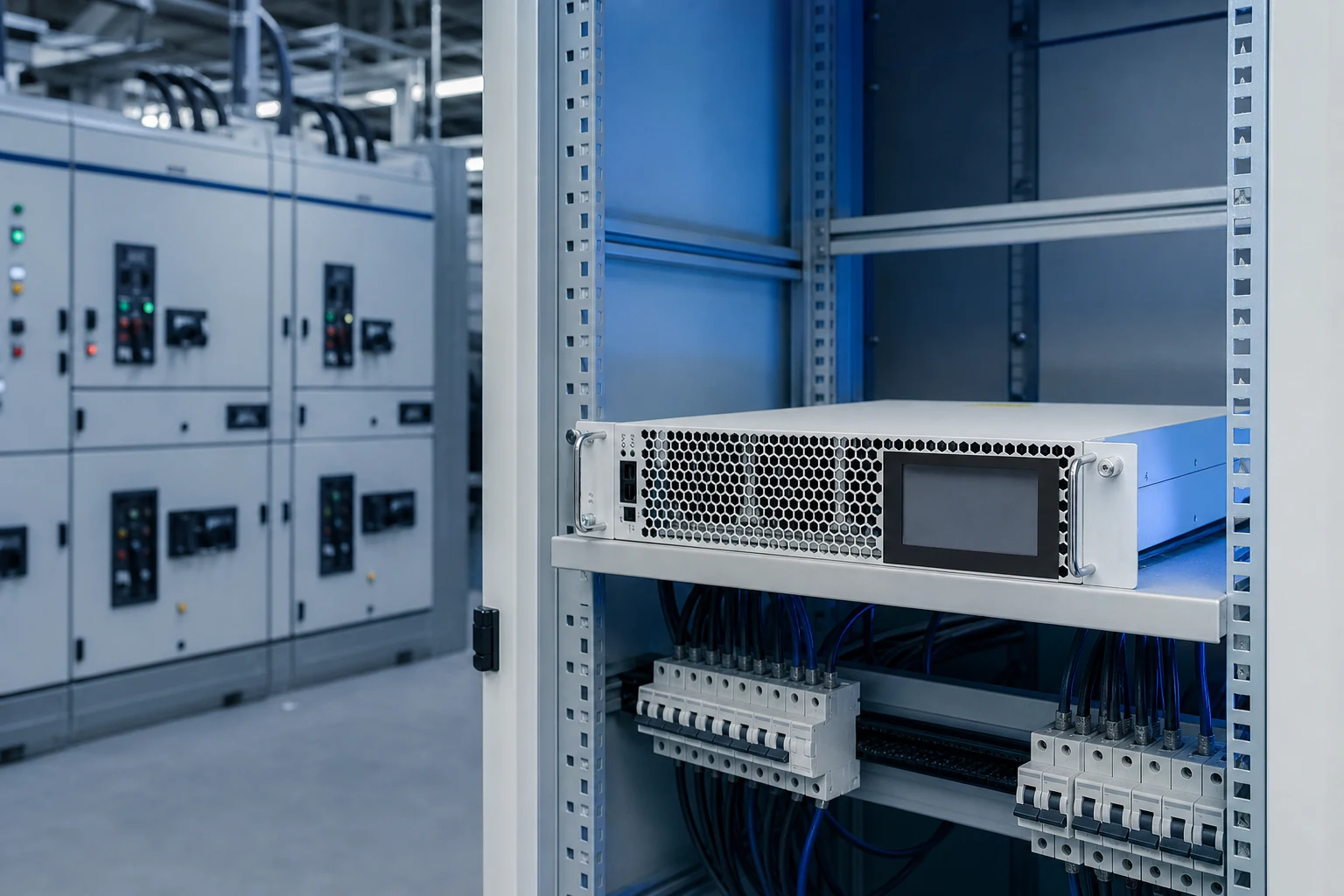

A typical power quality system may include APF, SVG, capacitors, and monitoring.
Compare total installed cost including reactors, controllers, enclosures, and commissioning—not equipment list price alone.
Internal links to SVG product line, low-voltage capacitor banks, and active harmonic filters help buyers navigate related product categories on cnbygele.com.
Lead times and MOQ vary by configuration; confirm in quotation for export shipments.
Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.
If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.
Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.
Cross-functional teams (operations, maintenance, procurement) benefit from a shared glossary: stepped kvar, TDD, flicker (Pst/Plt), and weak-grid voltage support mean different things to different stakeholders.
When several articles in this cluster address individual devices, use this overview to assign owners—who signs off on capacitor banks versus active filters versus SVG—and avoid duplicate purchases on the same feeder.
| Symptom | Likely cause | Mitigation |
|---|---|---|
| Low PF | Motor loads | Capacitor + controller |
| High THD | VFDs/UPS | APF |
| Voltage flicker | Fast varying Q | SVG |
Part 3. Monitoring and Lifecycle
Permanent PQ meters help verify performance after commissioning and catch load changes early.
Post-commissioning, schedule periodic verification of power factor, THD, and temperature rise at key buses.
Keep spare fuses, contactors, or modules identified in the maintenance plan.
Submit project parameters via CNBYG contact for engineering feedback on fit and documentation.
Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.
If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.
Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.
Long-term OPEX often hinges on switching wear, capacitor cell replacement, and filter module cooling; pillar planning should budget spares and training before the first outage.
Part 4. Documentation and Handover Checklist
Industrial acceptance should not rely on energization alone—documentation proves ratings, safety, and maintainability for the next maintenance cycle.
Use the tables below as a starting RFQ checklist; your utility or EPC contract may require additional items.
For product-specific datasheets, cross-check related CNBYG product pages and request any missing type test excerpts.
Align factory acceptance tests with items your insurer or utility interconnection agreement may require.
When comparing quotations, normalize currency, Incoterms, and included commissioning services before ranking suppliers.
| Document / item | Purpose | When to request |
|---|---|---|
| Factory type test report | Verify rated voltage, kvar, and temperature rise | Before purchase order |
| Single-line diagram template | Panel layout and protection coordination | Design phase |
| Communication register map | BMS/SCADA integration | Before FAT/SAT |
| Spare parts list (5+ year) | Lifecycle planning | Contract negotiation |
| Commissioning checklist | Acceptance testing | Before energization |
| Project stage | Key action | Owner |
|---|---|---|
| Concept | Define voltage class, load list, and utility rules | Owner / consultant |
| Design | Single-line, protection, and communication | Panel builder / EPC |
| Procurement | Verify ratings, tests, and spares | Buyer / QA |
| Commissioning | Functional tests and as-built docs | Site engineer |
Part 5. Commissioning, Monitoring, and Long-Term Operations
Commissioning should verify that reactive and harmonic targets are met at the point of common coupling, not only at the compensation cabinet terminals.
Functional tests typically include step response, power factor at defined load points, and harmonic readings compared to contract or IEEE 519 guidance where applicable.
Monitoring after energization helps catch hunting, unexpected resonance, or capacitor cell failures before they affect production uptime.
Train maintenance staff on lockout/tagout, discharge timing for capacitors, and which alarms require immediate shutdown versus scheduled service.
Schedule a post-warranty review to reassess load changes—production line upgrades often change compensation needs within three to five years.
Utility account managers can clarify whether PF adjustments affect demand charges only, energy charges, or both—align KPIs before writing acceptance tests.
Keep a spare-parts criticality list (fuses, contactors, fan assemblies, control boards) based on lead time and production impact, not catalog defaults alone.
Pillar and planning articles should be reviewed annually against meter logs and utility rule changes.
Export a PDF snapshot after each major edit so field teams and EPC partners reference the same version during outages and retrofits.

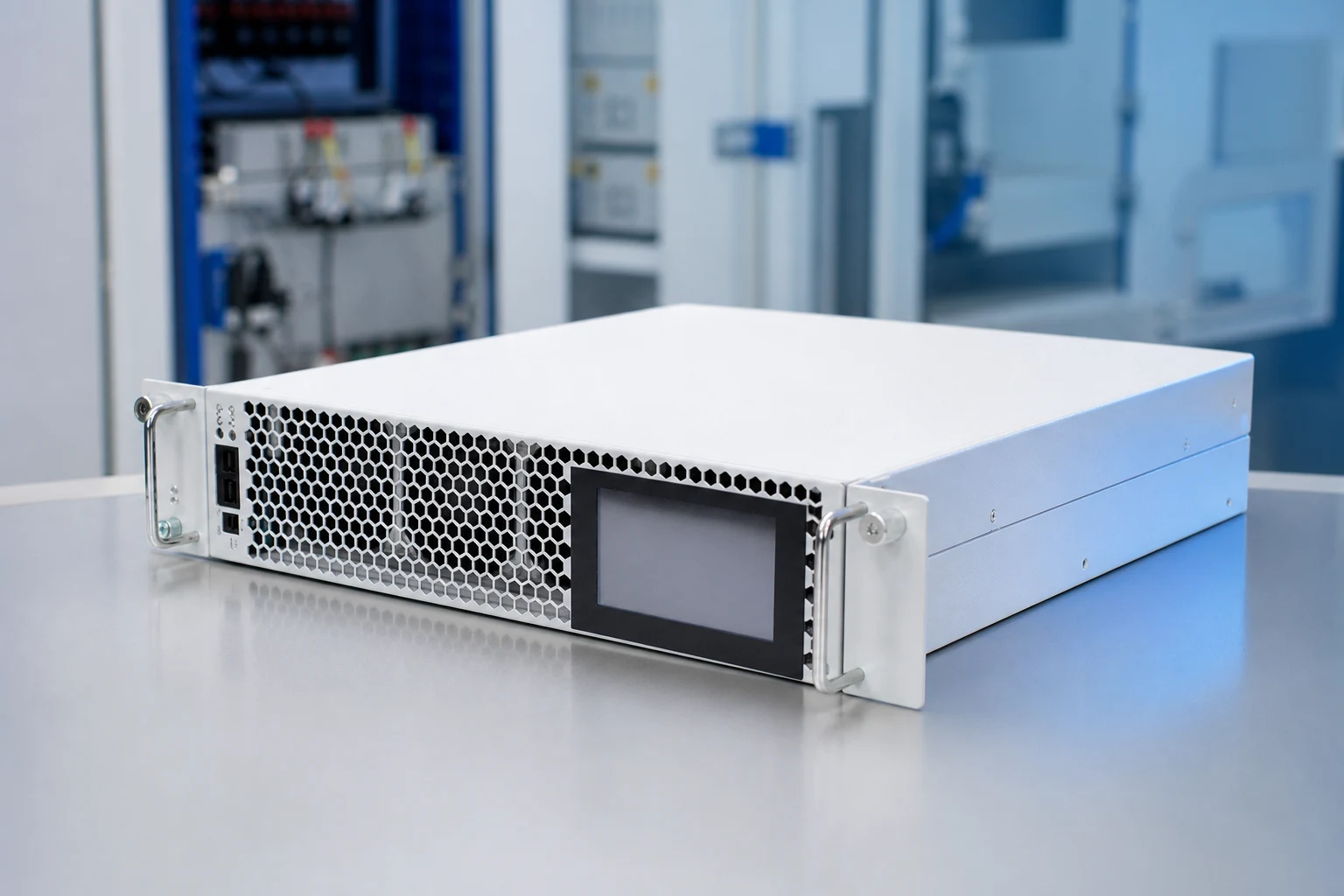

Recommended CNBYG Products
For project support, explore our related product line, power quality system options, and OEM/ODM capabilities on cnbygele.com.
FAQ
What is a power quality system in a commercial building?
It is the combination of measurement (Class A meters at the incomer and key feeders), analysis against standards, and mitigation equipment (power factor correction, detuned reactors, active filters, SVG) that keeps voltage, harmonics, and flicker within acceptable limits for the building’s loads.
Which power quality parameters should be monitored?
Voltage magnitude and deviations, sags/swells and interruptions, harmonics (typically to the 50th order) and THD, flicker (Pst/Plt), frequency, and three-phase unbalance.
What standard defines how power quality is measured?
IEC 61000-4-30 defines the measurement methods and accuracy classes. Class A is used where results must be comparable or contractual; Class S is used for statistical surveys. IEC 61000-4-15 covers the flickermeter.
What are the IEEE 519 limits at the point of common coupling?
IEEE 519 sets separate limits for harmonic voltage distortion (supplier) and harmonic current distortion (user) at the PCC. Current limits scale with the short-circuit ratio (Isc/IL) as TDD, and voltage THD limits depend on voltage level.
Where should power quality meters be installed?
Permanent meters typically go at the main incomer for compliance, plus key feeders serving sensitive or harmonic-heavy loads. Portable Class A recorders are used for temporary investigations.
How does monitoring integrate with a BMS?
Class A meters and PQ recorders expose data over protocols such as Modbus, IEC 61850, or a gateway, so alarms and trends flow into the building management or SCADA system for centralized dashboards and reporting.
Do I need mitigation equipment or just monitoring?
Start by measuring and comparing against IEEE 519/EN 50160. Only if limits are exceeded do you specify mitigation (PFC, detuned reactors, active filters, or SVG) sized to the measured problem, then re-measure to confirm.
References
- IEC 61000-4-30 — PQ measurement methods
- IEEE 519-2022 — Harmonic control
- EN 50160 — Voltage characteristics of public supply
- IEC 61000-4-15 — Flickermeter
- Fluke 1760 — Class A three-phase PQ recorder
