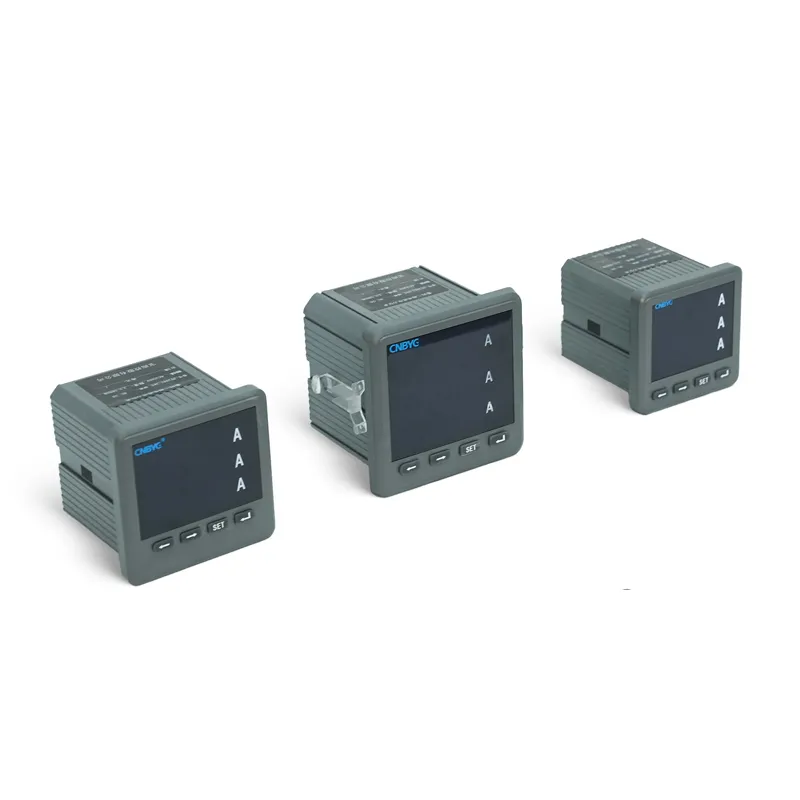

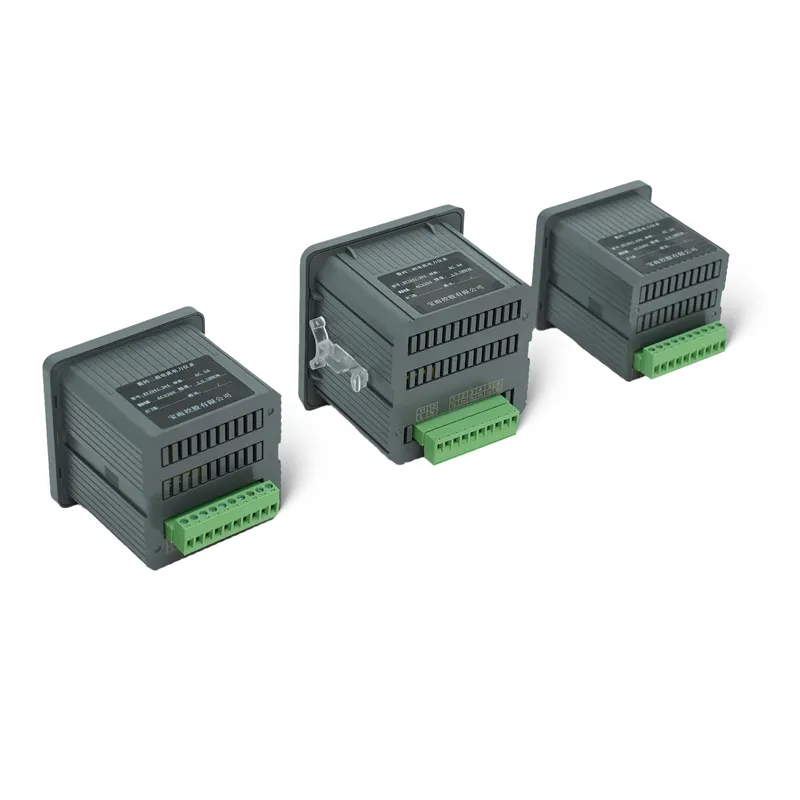

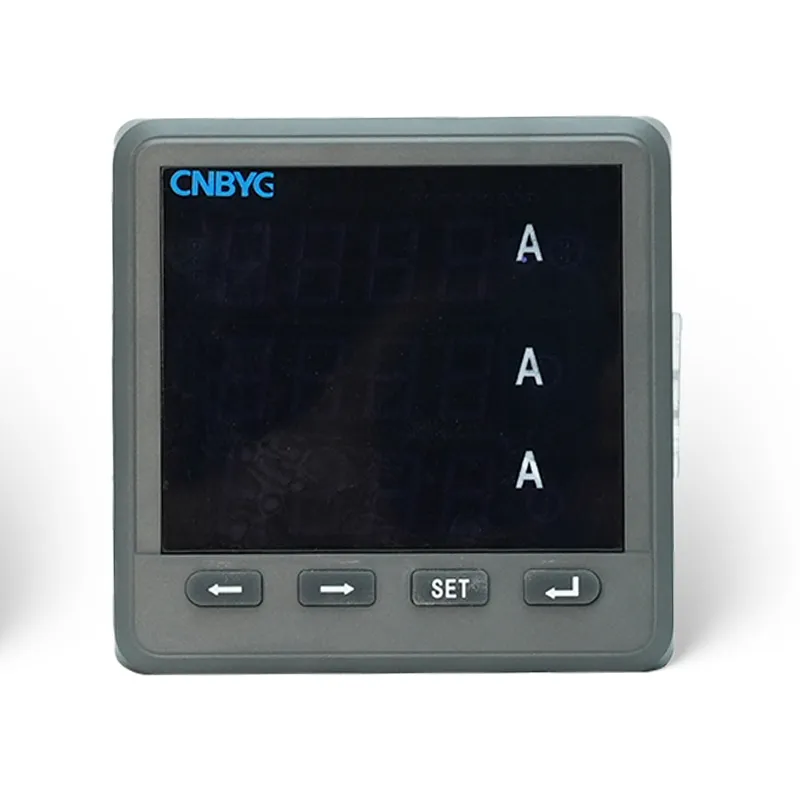

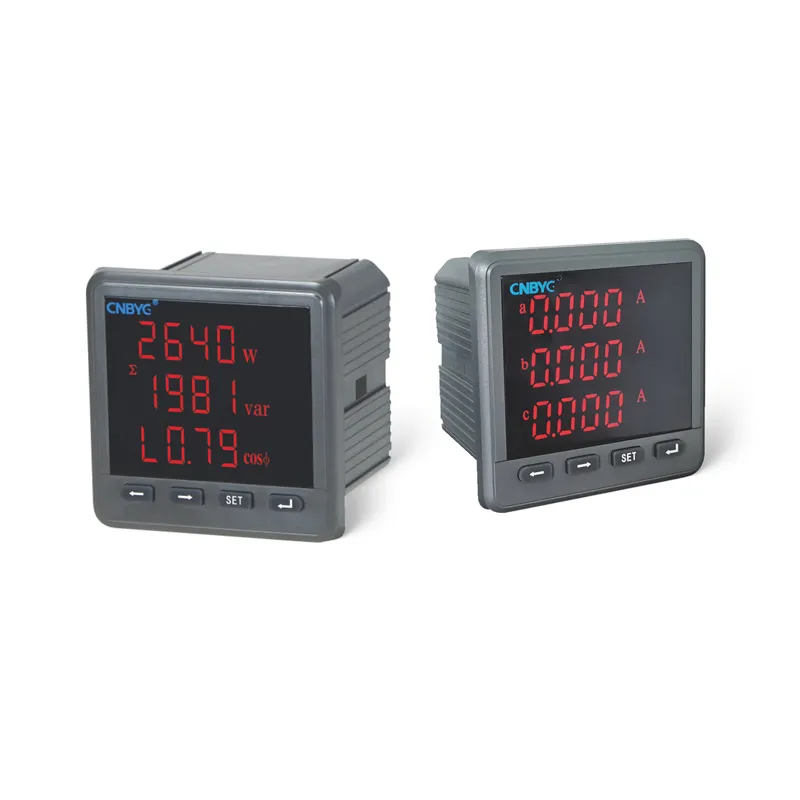

Product Description

The BY194 series instrument can measure various commonly used power parameters, whether there is electricity or not, and the maximum demand. it also has multiple expansion function modules: digital communication module, digital switch module,electric energy pulse module, and analog ransmission and output module, which can be flexibly selected according to needs. All transmitted data can be read through the RS-485 communication port using the MODBUS protocol, and the switch input can be used to monitor the status of the switch; The output of the switching value can be remotely controlled and alamed when exceeding the limit; The analog transmission output function can replace traditional transmiters.

Main Technical Parameters

Product name	Model	Display method	Overall dimensions	Dimension
Single-phase ammeter	BY1941-D*1	Single row LED digital	48×48	45×45
	BY1941-A*1		72×72	67×67
	BY1941-3*1		80×80	76×76
	BY1941-9*1		96×96	92×92
	BY1941-2*1		120×120	111×111
Single-phase voltmeter	BY194U-D*1	Single row LED digital	48×48	45×45
	BY194U-A*1		72×72	67×67
	BY194U-3*1		80×80	76×76
	BY194U-9*1		96×96	92×92
	BY194U-2*1		120×120	111X111
Three-phase ammeter	BY1941-D*4	Three row LED digital	48×48	45×45
	BY1941-A*4		72×72	67×67
	BY1941-3*4		80×80	76×76
	BY1941-9*4		96×96	92×92
	BY1941-2*4		120×120	111×111
Three-phase voltmeter	BY194U-D*4	Three row LED digital	48×48	45×45
	BY194U-A*4		72×72	67×67
	BY194U-3*4		80×80	76×76
	BY194U-9*4		96×96	92×92
	BY194U-2*4		120×120	111×111
Three phase current and voltage combination meter	BY194UI-A*4	Three row LED digital	72×72	67×67
	BY194UI-3*4		80×80	76×76
	BY194UI-9*4		96×96	92X92
	BY194UI-2*4		120×120	111×111
Multifunctional power instrument	BY194E-AS4	Digital tube full charge measurement	72×72	67×67
	BY194E-3S4		80×80	76×76
	BY194E-9S4		96×96	92×92
	BY194E-2S4		120×120	111×111
Multifunctional power instrument	BY194E-ASY	LCD full charge measurement	72×72	67×67
	BY194E-3SY		80×80	76×76
	BY194E-9SY		96×96	92×92
	BY194E-2SY		120×120	111×111

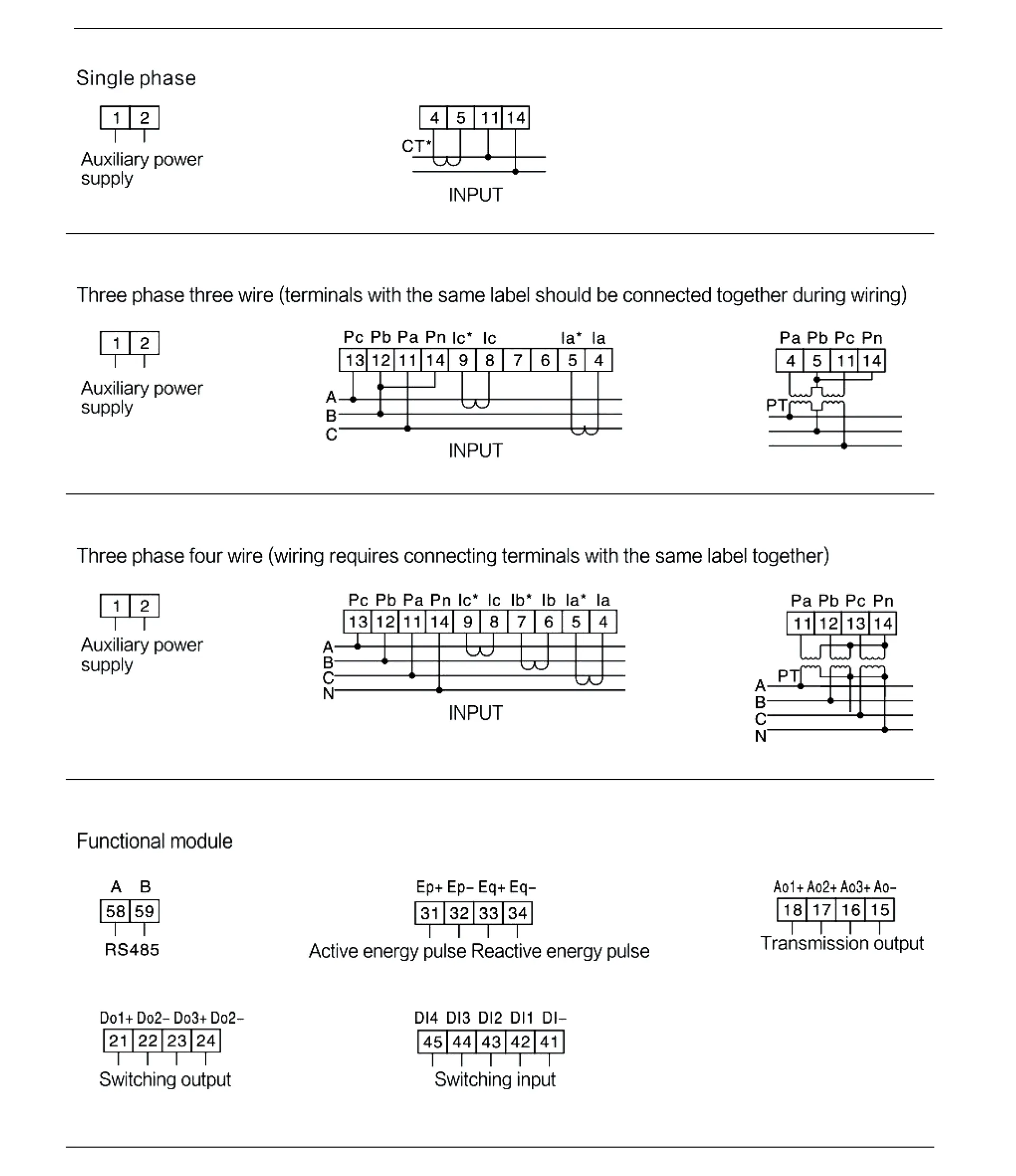

Wiring Method

Note: “*” refers to the specific wiring method of the current inlet terminal, please refer to the product’s random wiring diagram. Correct wiring is the first step in the corect use of an instrument. Pay attention to the matching of the external auxliary power supply and input signal with the model of the ordered instrument (such as auxiliary power supply voltage exceeding270v, do not use it as AC38oV for6kV/100V instruments). The wiring position should be correct, and special attention should be paid to not connecting strong current signals to weak current signals (such as communication, pulse output,etc.). Additionally, pay special attention to the input voltage The polarity of the current signal should be correct., When the polarily of the input signal is incorrect,it can lead to correct votage and current measurement data but incorrect power, resulting in incorrect measurement of electrical energy.Therefore, it is necessary to pay attention to the wiring of the instrument.
