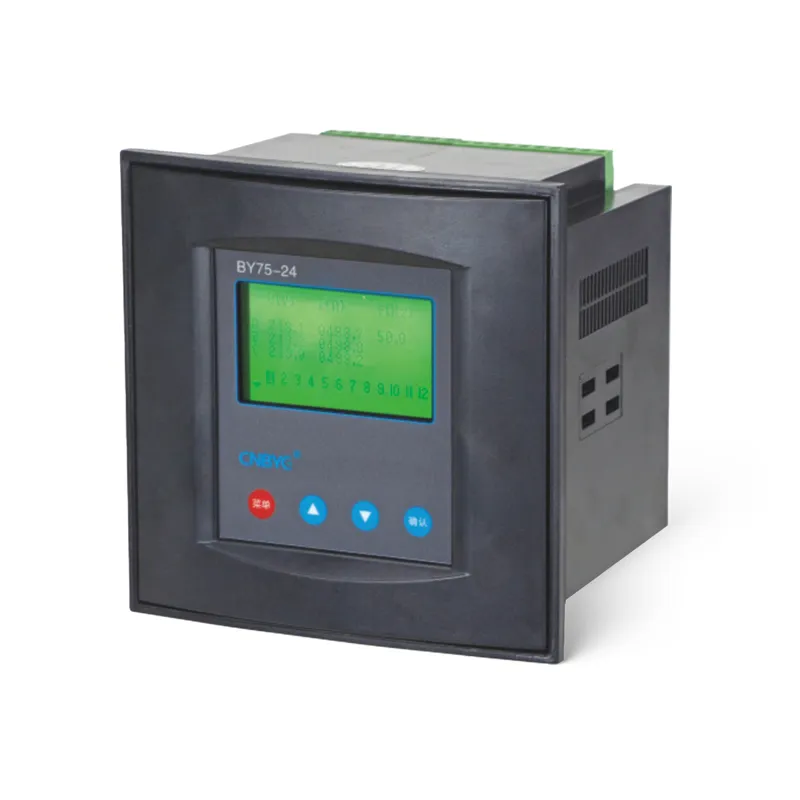

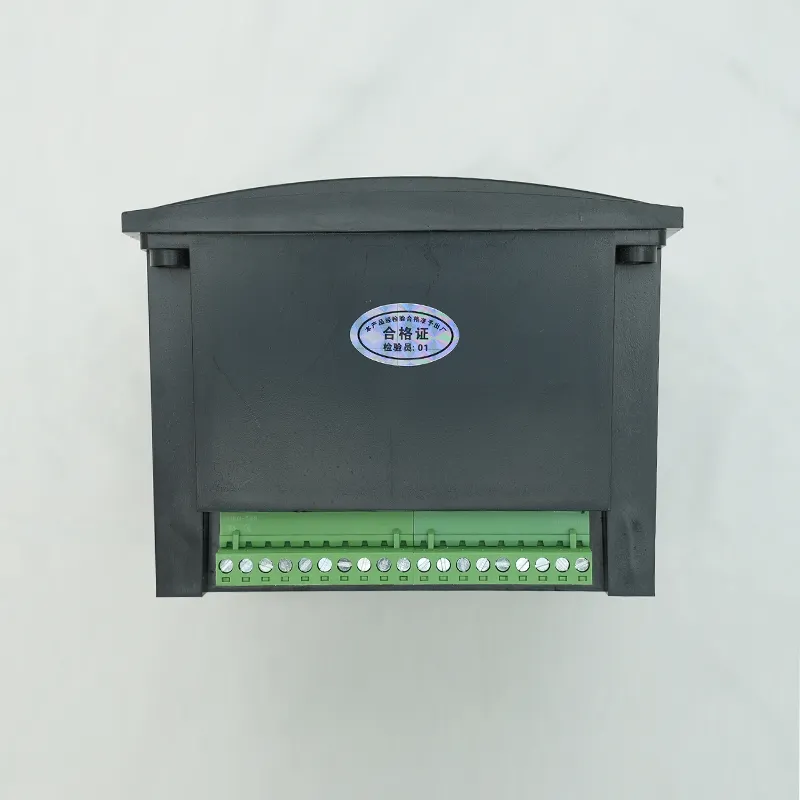

BY75 Series Reactive Power Compensation Controller
The BY75-24 reactive power compensation controller is a new type of distribution measurement and control equipment that integrates funclions such as data collection, reactive power compensation, and power grid parameter analysis. It is suitable for monitoring and reactive power compensation control of AC 0.4KV and50Hz low-voltage distribution systems.
Product Description

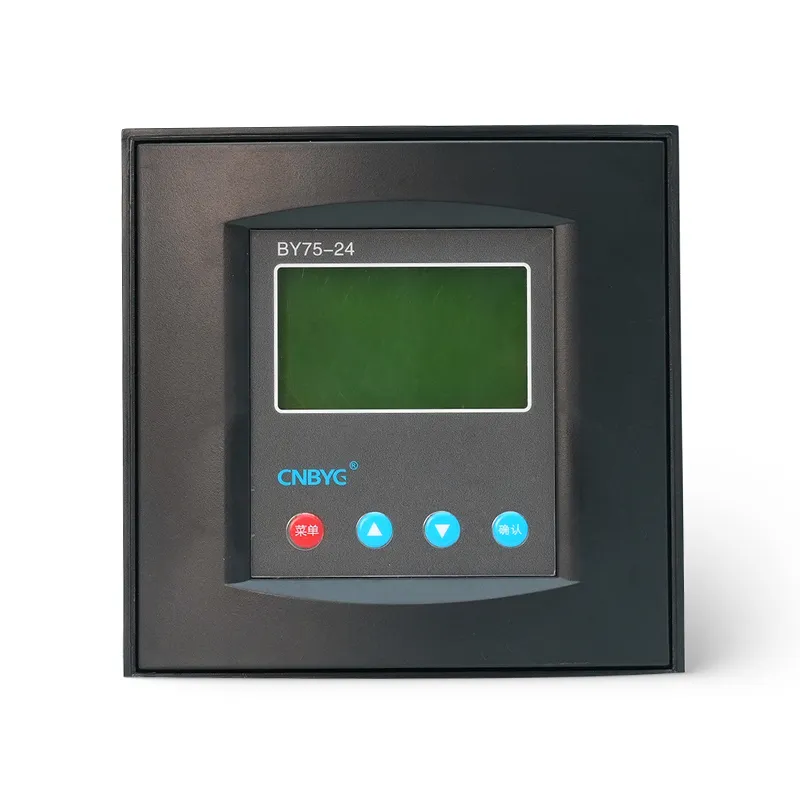

The BY75-24 reactive power compensation controller is based on a high-speed digital signal processor and adopts AC sampling. The human-machine interface is a 128X64 dot matrix large screen LCD display. it has power distribution monitoring, reactive power compensation, harmonic analysis, adaptive freqvency algorithm, and input signals that vary between 45Hz and 55Hz.
Main Technical Parameters
Basic Parameters
| Project | Parameter |
| Supply voltage | AC 220V/380V±20% |
| Sampling voltage | AC 220V/380V±20% |
| Power frequency | 50Hz±5% |
| Sampling current | 0~5A |
| Maximum power consumption of the entire machine | 14W (Depending on the power of the controlled switching switch) |
| Control output contact | 24 Channels, Each DC12Vx30mA |
| Hole size | 138x138mm |
Measurement Accuracy
| Project | Parameter |
| voltage | ±0.5% |
| Current | ±0.5% |
| Active Power | ±1.0% |
| Reactive Power | ±1.0% |
| Frequency | ±0.5% |
| Power Factor | ±1.0% |
Control Parameters
| Project | Parameter | ||
| Control sensitivity | 30mA | ||
| Target COS Φ(1) | 0.85~1.00 | Step 0.01 | Factory preset 1.00 |
| Target COS Φ(2) | 0.00-0.60 | Step 0.01 | Factory preset 1.00 |
| Threshold coefficient | 0.5~1.2 | Step 0.1 | Factory preset 1.00 |
| Switching delay(1) | 00s~600s | Step 1/0.02 | Factory preset Os |
| Switching delay(2) | 00s~300s | Step 1 | Factory preset 8s |
| Over voltage protection | 230V-280V | Step 1V | Factory preset 240V |
| Under voltage protection | 210V~180V | Step 1V | Factory preset 190V |
| Harmonic voltage exceeding limit | 00.0%~25.0% | Step 0.5% | Factory preset O0.0% |
| Harmonic current exceeding limit | 00.0%~100.0% | Step 0.5% | Factory preset 00.0% |

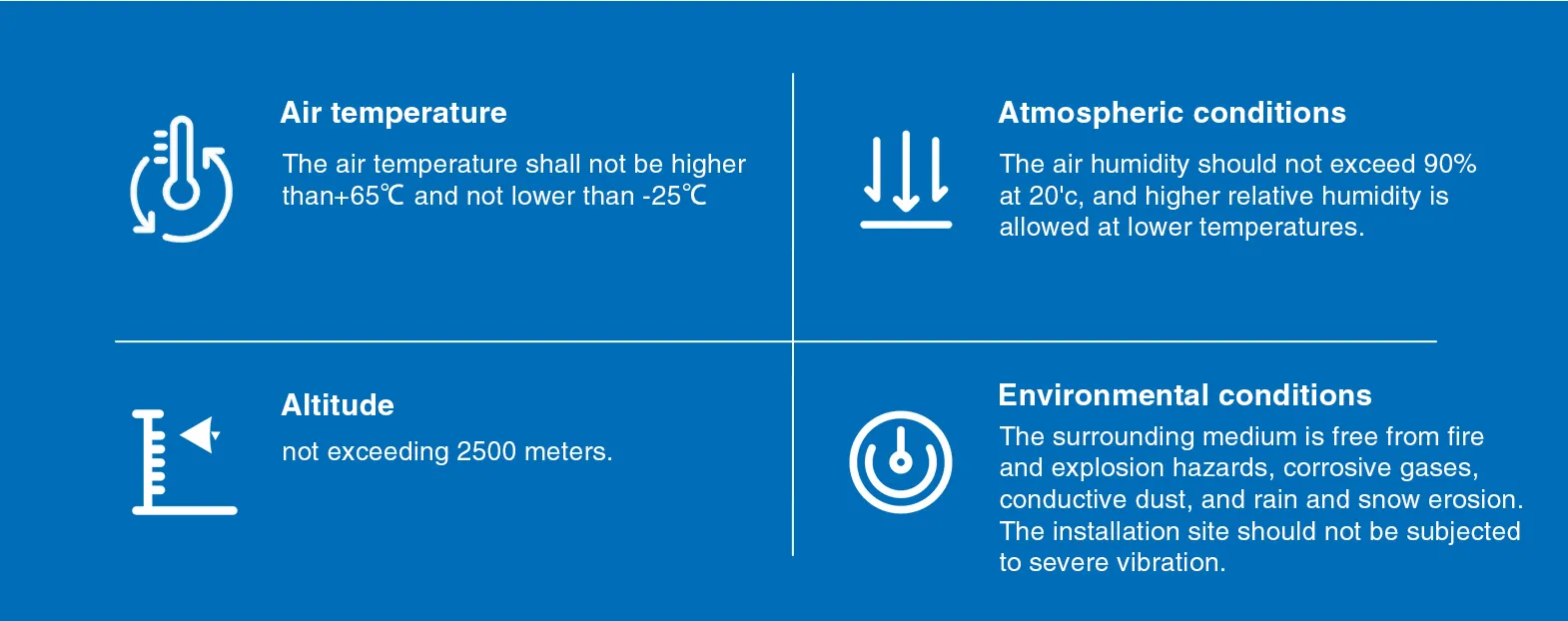

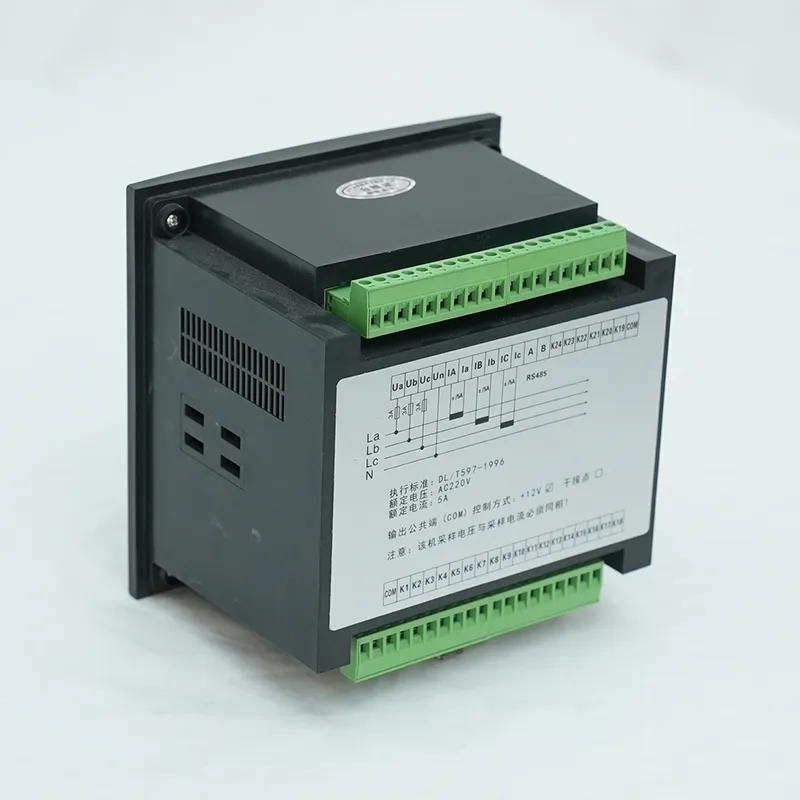

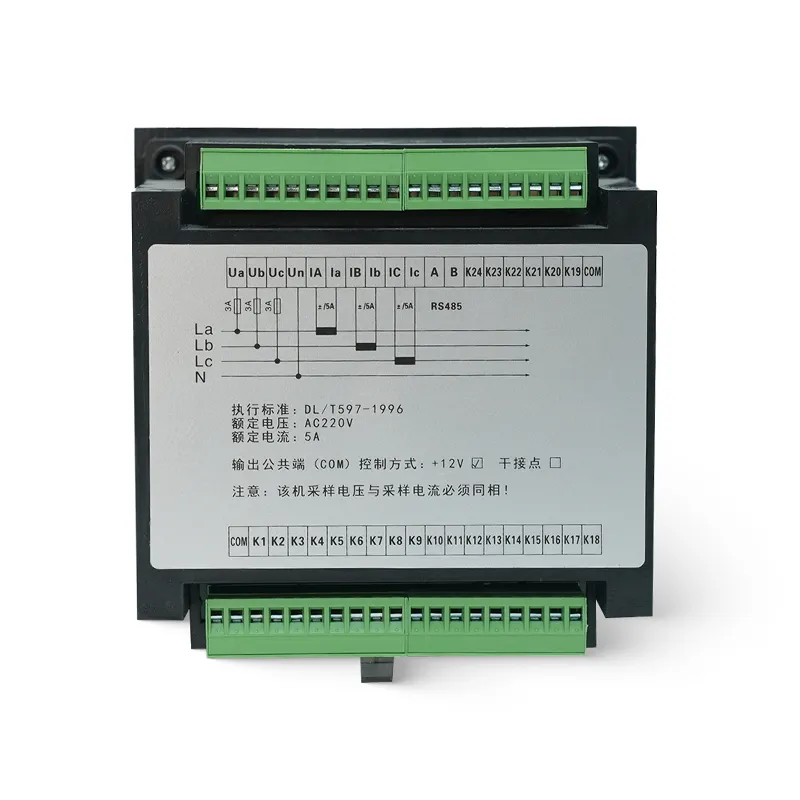

Wiring Method
