Capacitor Bank Sizing for Power Factor Correction — Engineering Guide

Capacitor bank sizing for power factor correction starts with measured kW and power factor at the billing or compensation point—not with catalog kvar tables alone. This guide focuses on practical evaluation steps for U.S. industrial and commercial buyers—measurement, documentation, and lifecycle support—not generic marketing claims. Where equipment selection is involved, cross-check public specifications on cnbygele.com and confirm project-specific limits with your utility or consulting engineer. Section checklists can be reused as RFQ attachments and commissioning handover outlines.

Part 1. Measure and Set the Target Power Factor

Record active power (kW) and power factor at peak and typical load intervals—utilities often bill on interval peaks.

Target PF should reflect tariff rules; 0.95 lagging is common but verify with your account manager.

Power quality projects succeed when measurement, design, and procurement stay aligned across owner, consultant, and panel builder roles.

Document nominal voltage, available fault level, and ambient conditions before final equipment selection.

Use conservative language for performance claims until site-specific studies confirm targets.

Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.

If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.

Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.

Part 2. kVAR Calculation and Step Selection

Required kvar ≈ kW × (tan φ1 − tan φ2), where φ1 is the present angle and φ2 is the target angle.

Select stepped kvar that avoids over-compensation at minimum load; pair with automatic controllers for varying plants.

Compare total installed cost including reactors, controllers, enclosures, and commissioning—not equipment list price alone.

Internal links to SVG product line, low-voltage capacitor banks, and active harmonic filters help buyers navigate related product categories on cnbygele.com.

Lead times and MOQ vary by configuration; confirm in quotation for export shipments.

Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.

If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.

Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.

Part 3. Detuning, Protection, and Verification

When VFDs or rectifiers dominate, add series filter reactors and re-rate capacitor voltage for detuning rise.

Verify fuses, discharge, and step interlocks before energization; re-measure PF after commissioning.

Post-commissioning, schedule periodic verification of power factor, THD, and temperature rise at key buses.

Keep spare fuses, contactors, or modules identified in the maintenance plan.

Submit project parameters via CNBYG contact for engineering feedback on fit and documentation.

Capture nameplate data, single-line drawings, and utility interconnection rules in the RFQ package to reduce back-and-forth during technical review.

If your site mixes linear motors and nonlinear electronics, treat harmonic and reactive targets as linked requirements rather than separate purchases.

Define acceptance criteria before shipment—power factor, step response, or THD at agreed load points—so commissioning disputes are less likely.

Part 4. Documentation and Handover Checklist

Industrial acceptance should not rely on energization alone—documentation proves ratings, safety, and maintainability for the next maintenance cycle.

Use the tables below as a starting RFQ checklist; your utility or EPC contract may require additional items.

For product-specific datasheets, cross-check related CNBYG product pages and request any missing type test excerpts.

Align factory acceptance tests with items your insurer or utility interconnection agreement may require.

When comparing quotations, normalize currency, Incoterms, and included commissioning services before ranking suppliers.

Part 5. Commissioning, Monitoring, and Long-Term Operations

Commissioning should verify that reactive and harmonic targets are met at the point of common coupling, not only at the compensation cabinet terminals.

Functional tests typically include step response, power factor at defined load points, and harmonic readings compared to contract or IEEE 519 guidance where applicable.

Monitoring after energization helps catch hunting, unexpected resonance, or capacitor cell failures before they affect production uptime.

Train maintenance staff on lockout/tagout, discharge timing for capacitors, and which alarms require immediate shutdown versus scheduled service.

Schedule a post-warranty review to reassess load changes—production line upgrades often change compensation needs within three to five years.

Utility account managers can clarify whether PF adjustments affect demand charges only, energy charges, or both—align KPIs before writing acceptance tests.

Keep a spare-parts criticality list (fuses, contactors, fan assemblies, control boards) based on lead time and production impact, not catalog defaults alone.

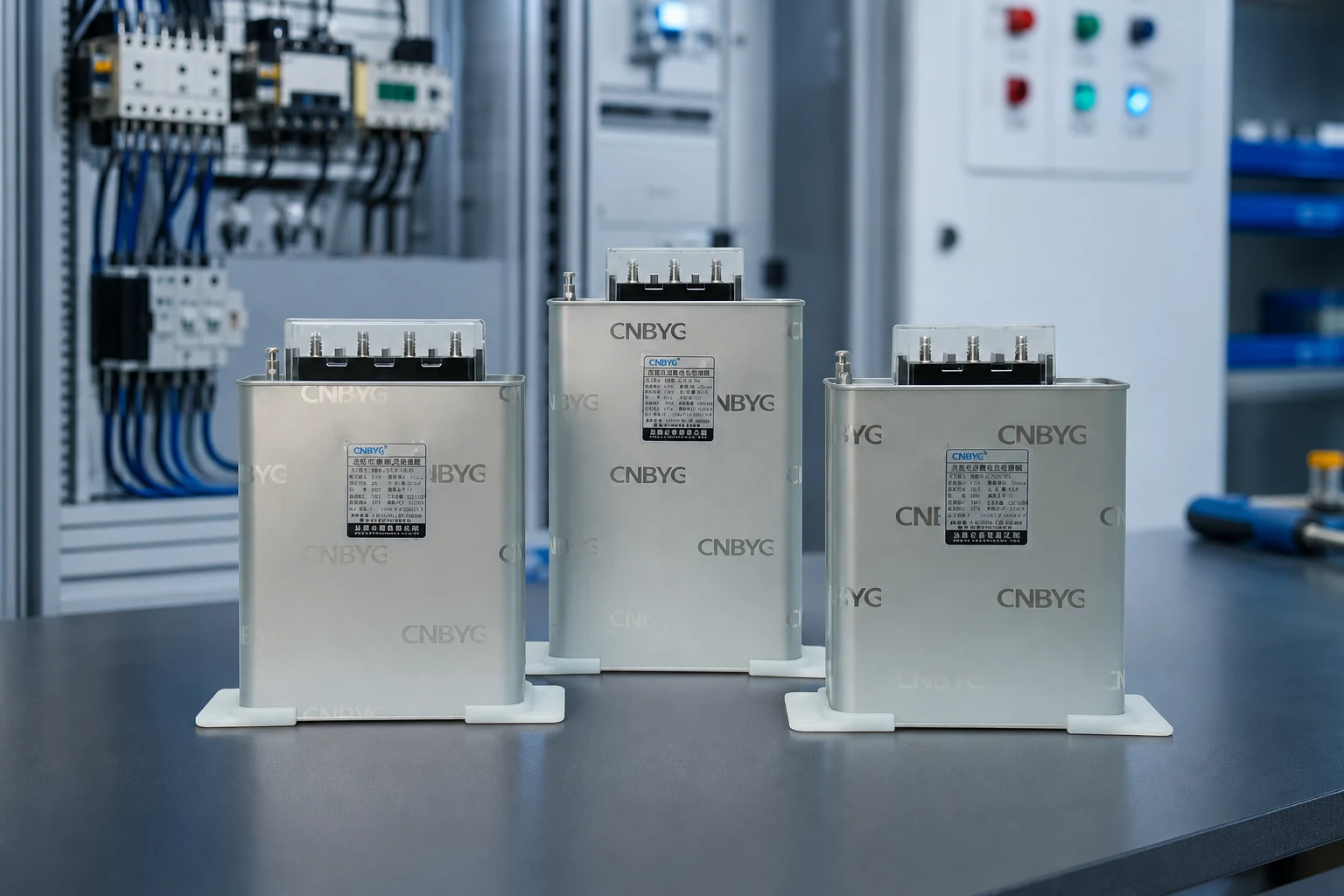

Recommended CNBYG Products

For project support, explore related product line, power quality planning articles, OEM/ODM programs, about CNBYG on cnbygele.com.

Ready to discuss your project? Contact CNBYG engineering contact with your voltage class, load list, and target power factor or THD goals.

FAQ

How do you calculate kVAR for power factor correction?

Measure active power kW and the present and target power factor angles. Required kvar ≈ kW × (tan φ1 − tan φ2), where φ1 corresponds to the current PF and φ2 to the target PF.

What power factor target should I use for capacitor sizing?

Many U.S. industrial sites target 0.95 lagging, but confirm your utility tariff and any leading-PF penalties before finalizing the setpoint.

Should I use a fixed or automatic capacitor bank?

Fixed banks suit nearly constant base load. Automatic stepped banks are preferred when load varies more than roughly 20% so you avoid over-compensation at light load.

How do I avoid over-compensation when sizing capacitors?

Size steps for minimum-load conditions, use controller minimum-step logic, and verify leading PF is not exceeded after the largest step switches in.

When do I need detuning reactors with a capacitor bank?

When harmonic-producing loads (VFDs, rectifiers, UPS) are significant—detuning shifts resonance and reduces amplification; capacitors may need higher voltage rating.

Should capacitors be sized to peak or average load?

Use the billing or penalty measurement interval—often peak or near-peak demand—while checking that the resulting steps do not over-correct at minimum load.
